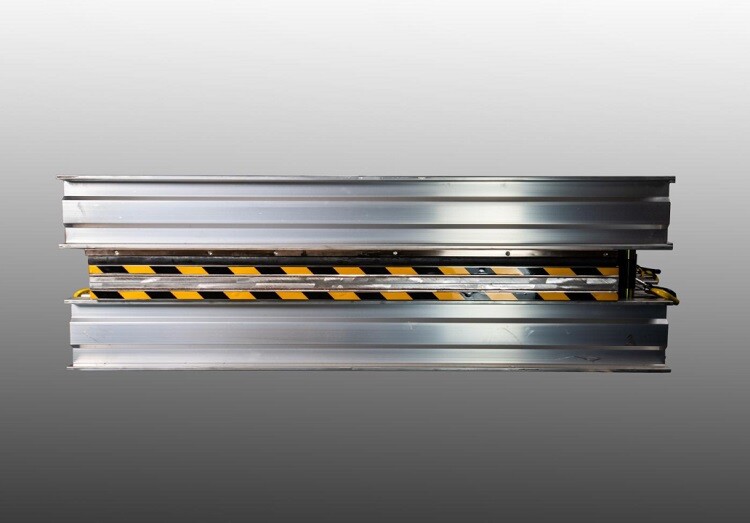

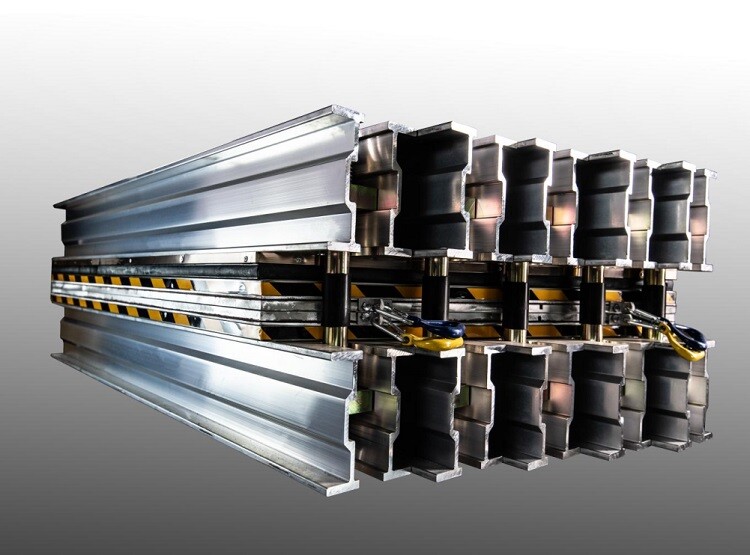

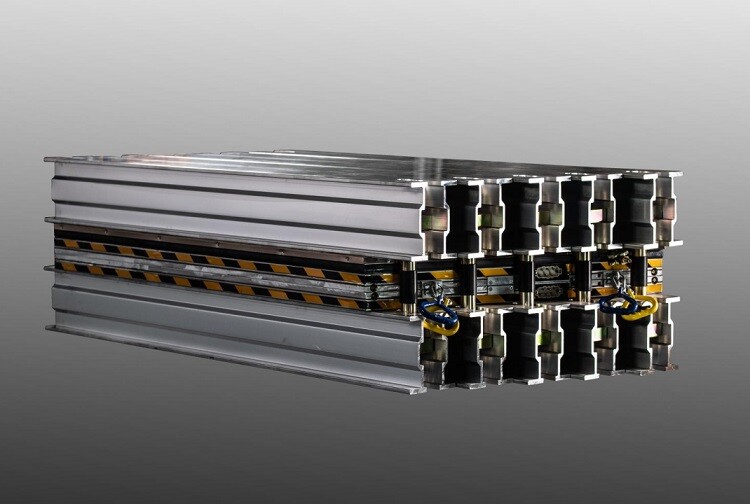

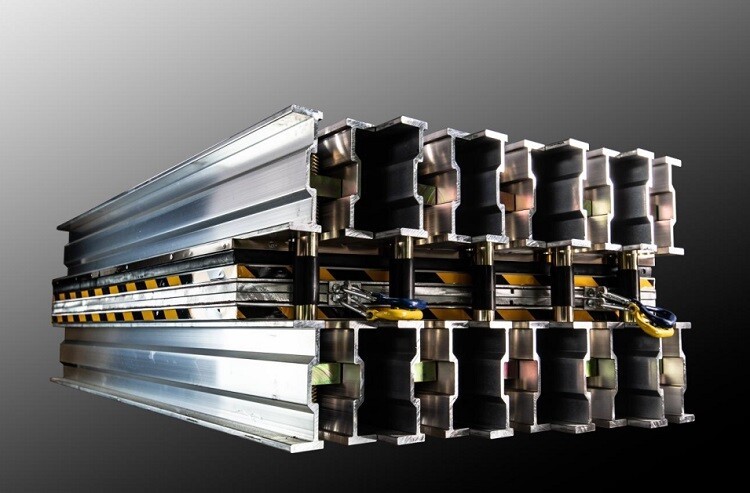

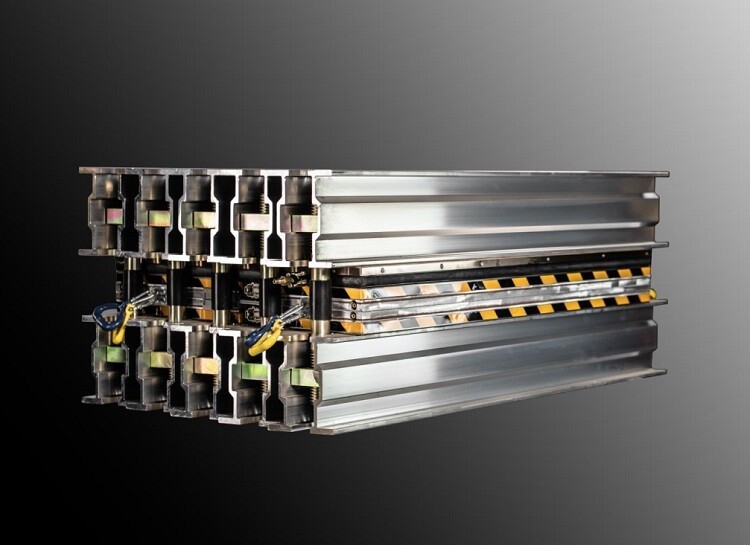

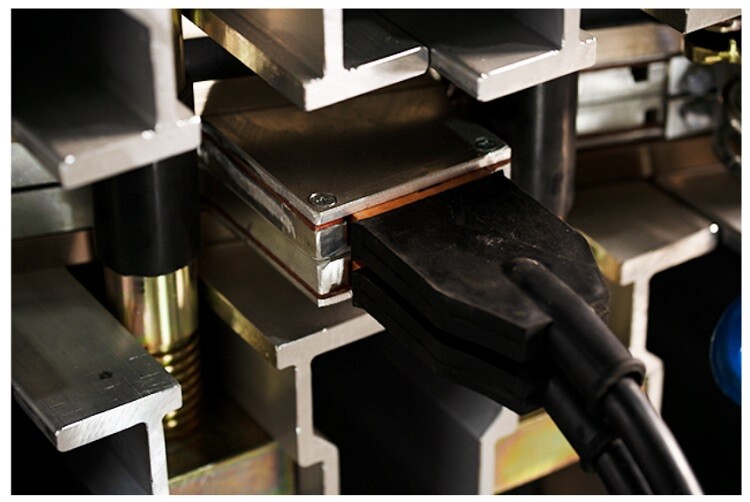

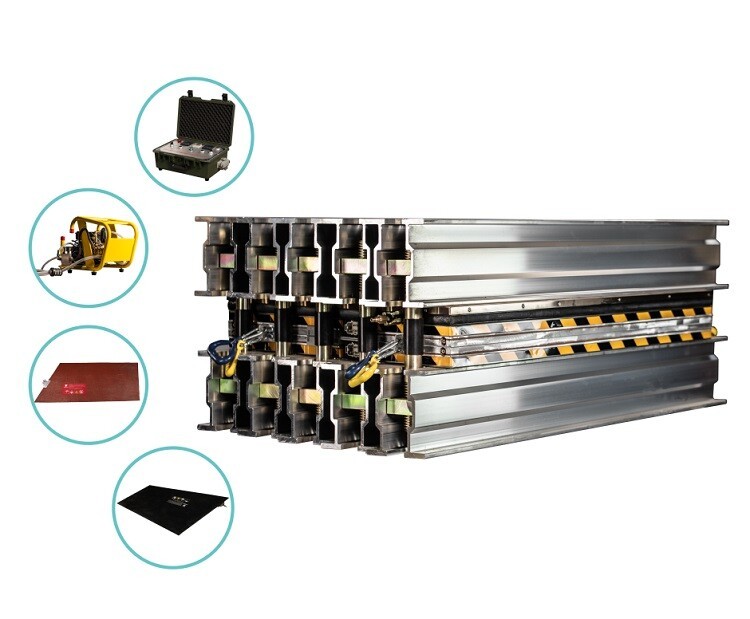

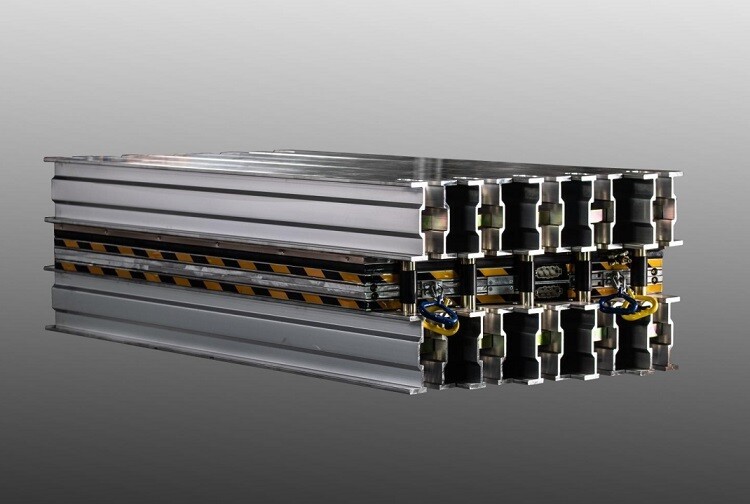

ANTAI SVP Series Belt Vulcanizing Press is widely recognized as the premier heavyweight sectional vulcanizing press in the world. It provides comprehensive coverage for all splice lengths, whether for fabric or steel cord belts. The ANTAI SVP is highly portable, making it the top choice in the belt splicing industry.

1. ANTAI's "Pressure Bag" uniform pressure system is suitable for a maximum pressure of 3.0 MPa.

2. It features a customized "Copper Pipe" cooling system within the platens.

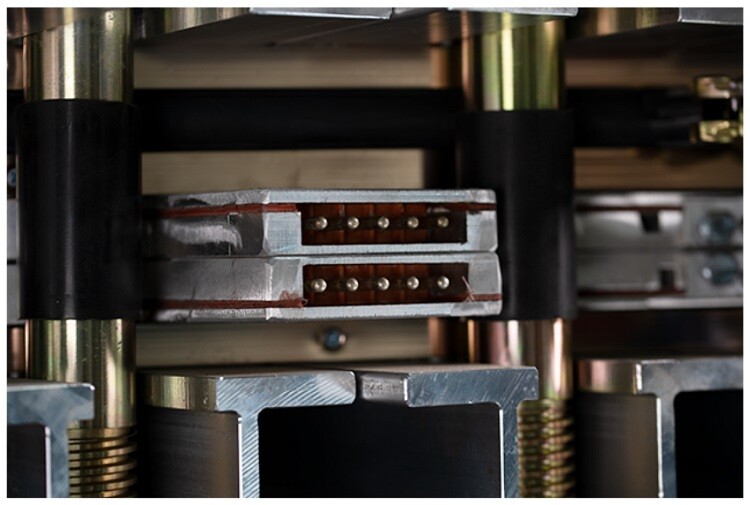

3. The "Silicone Element" fast heating system is a significant advantage, ensuring even and efficient heat distribution.

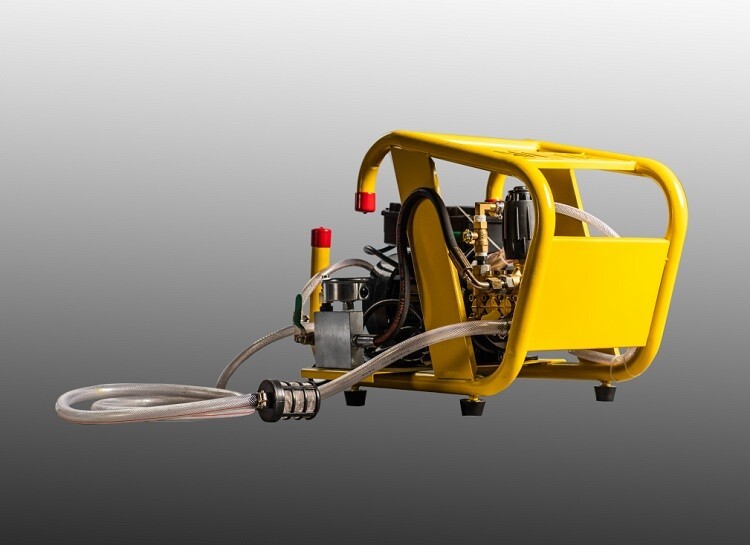

4. The press is equipped with an automatic pressure pump, capable of operating at pressures above 90 Bar.

5. SVP platens are tailored to accommodate various belt widths based on customer requirements.

6. The press is constructed with light aluminum alloy cross beams and high-strength bolts and nuts, capable of exerting a maximum pressure of 2.5 MPa.

7. It supports various voltage options, including 220 volts, 380 volts, 440 volts, 525 volts, and 660 volts, with the ability to accommodate special customer requirements.

8. The quick water cooling device can reduce the temperature from 145 degrees to 80 degrees or lower in just 15 to 20 minutes.

9. Heating time from room temperature to vulcanization temperature is approximately 20 to 30 minutes.

10. The heating platen surface temperature discrepancy is within 5 degrees.

11. The temperature adjustment range is 0 to 200 degrees.

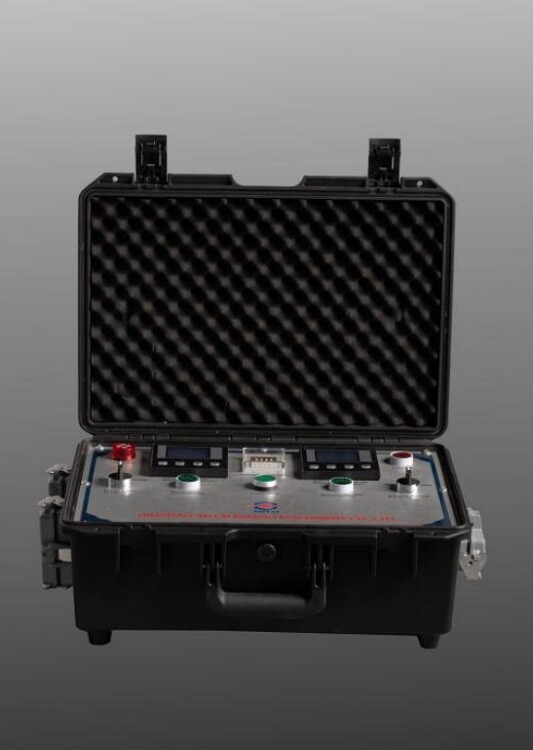

12. The automatic control box is insulated, waterproof, and equipped with security alarms. It also features an auto power-off function when the vulcanization temperature is reached.
