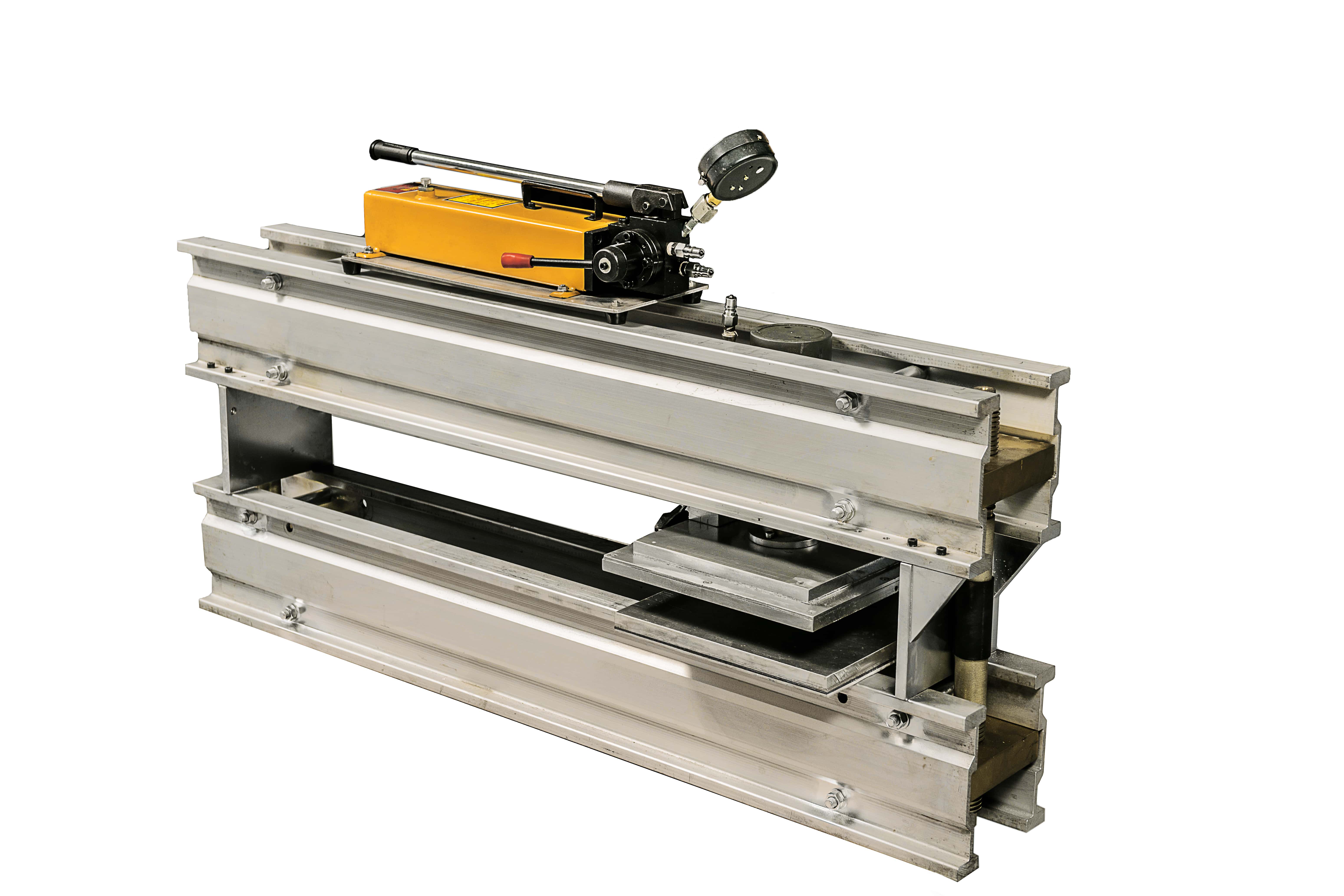

The advantage of this machine is that the heating platen is slide-able, which is convenient for repairing small damage in the middle of the conveyor belt.

There are various heating platen sizes for choice, 300x300mm, 200x200mm, etc.

Customer can just tell us their work needs, so we can customize the machine as per the real work needs.

Features ：

1. High strength aluminium alloy structure - lightweight and robust;

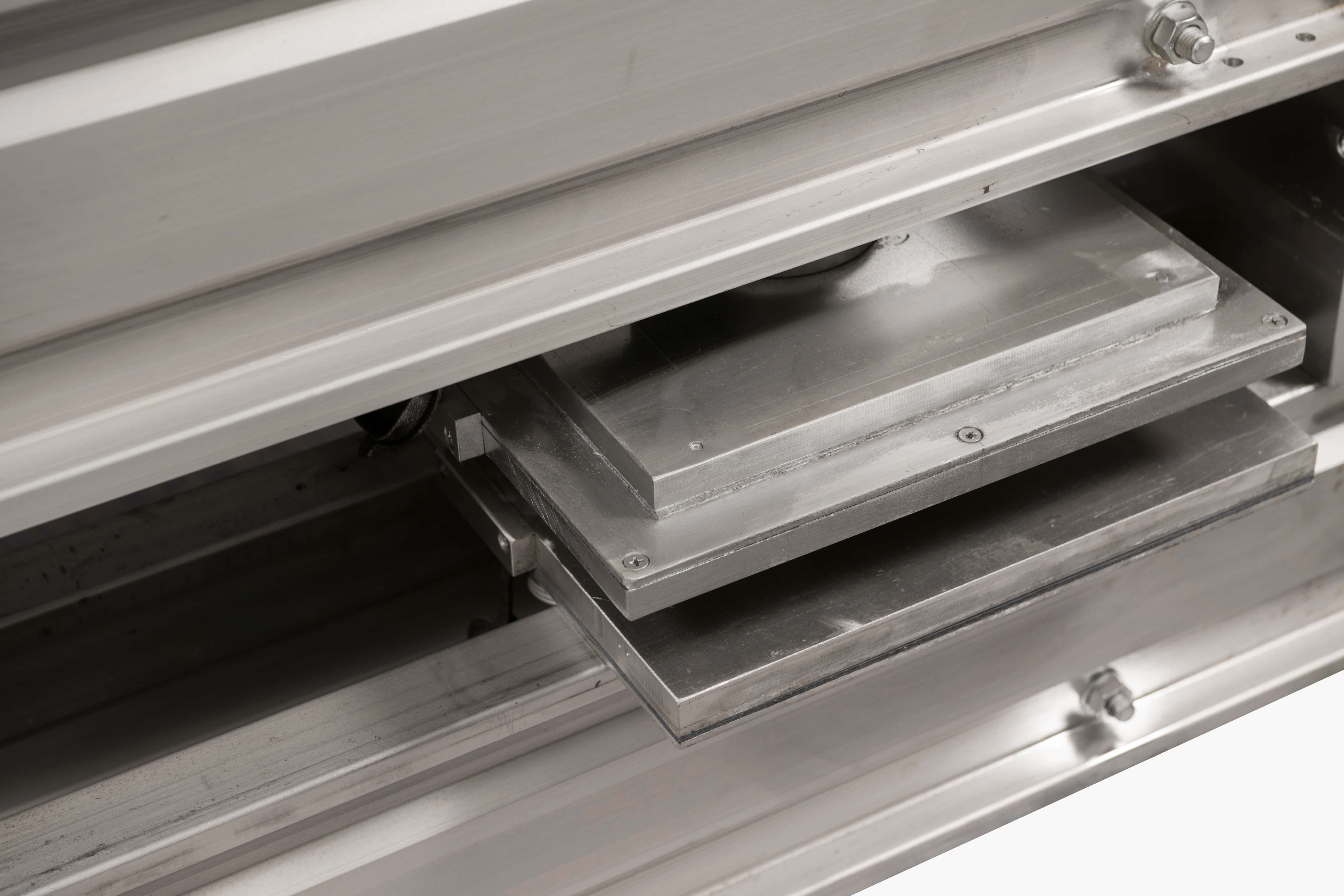

2. Slide-able heating platen design - quick repair spot positioning;

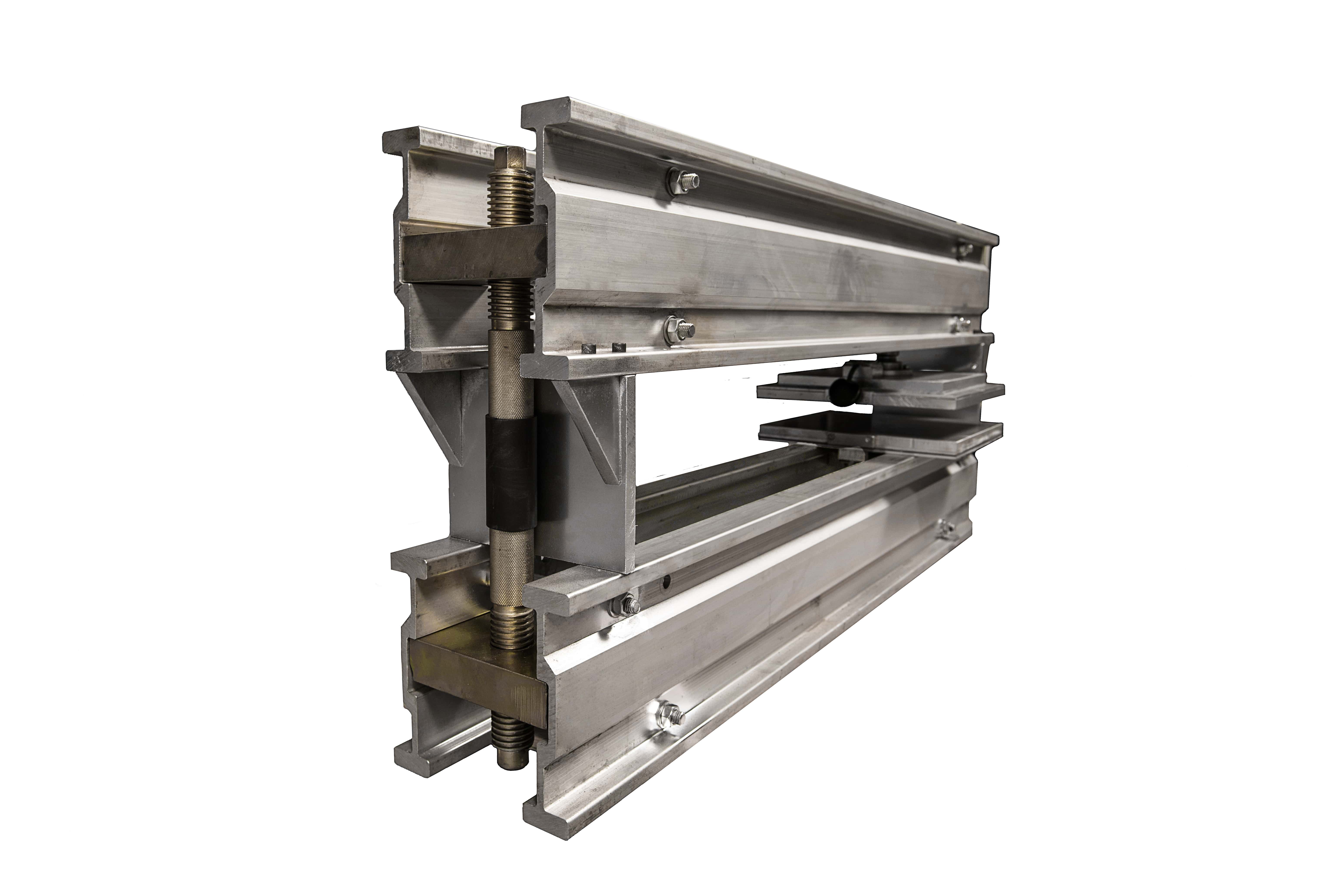

3. Screw rods on both ends - to ensure safe and reliable operation;

Application：

The belt spot repairing machine is reliable, lightweight and portable, which is widely used in the field of metallurgy, mining, power plants, ports, building materials, cement, coal mine, chemical industry, etc.

Application Method：

1. Move the machine to the repair site.

2. Fill glue in the damaged areas that need to be repaired.

3. Place the lower frame under the belt and align the upper slide-able heating platen with the damaged area.

4. Place the upper frame above the belt, and then place the lower slide-able heating platen just under the damaged area of the belt.

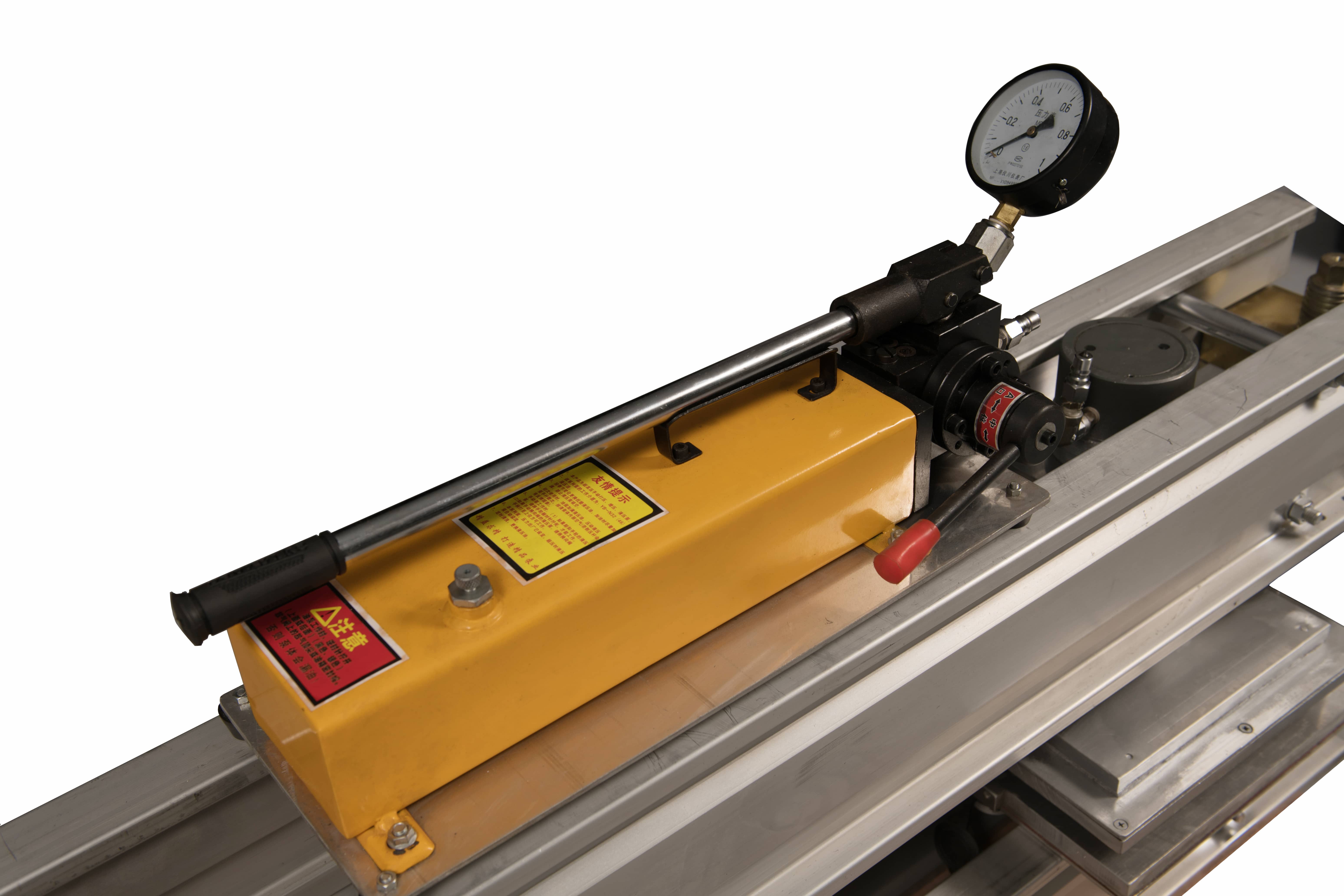

5. Press the hydraulic lever until it reaches enough pressure level.

6. Connect the primary cable to power source and electrical control box. And then connect the secondary cable with the control box and the upper and lower plates.

Please note that it should match the corresponding signs on the control box.

7. Turn on the control box and start the vulcanizing repair process.

Under the condition of ensuring the working conditions on site and strictly following the operation procedures, the belt joints bonded by this "hot vulcanization" method can generally reach more than 90% of the service life of the mother belt, which is the connection mode of belt joints with the highest bonding strength at present.
